HIKVISION CS-CV346-A0-7A3WFR CAMARA IP EZVIZ 3MP

Marcas: Ezviz , Hikvision
Código: CS-CV346-A0-7A3WFR

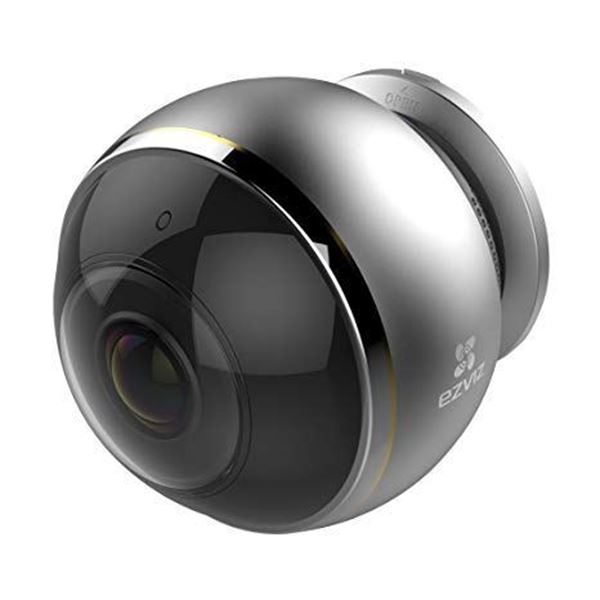

EZVIZ - CS-CV346-A0-7A3WFR - Cámara de ojo de pez inalámbrica de 3MP
Model CS-CV346-A0-7A3WFR
Camera
Image Sensor 3 Megapixel 1/2.8” Progressive Scan CMOS
Minimum Illumination 0.01 lux @(F2.2,AGC ON), 0 lux with IR
Shutter Speed Self-adaptive shutter
Lens 1.2mm@ F2.2, Horizontal angle: 180° Diagonal angle: 180°
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Progressive WDR
Compression
Video Compression H.264
H.264 Type Main profile
Video Bit Rate HD, Balanced and Smooth. Adaptive bit rate
Max. Resolution 1344×1344
Image setting Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio)
BLC Support
Network
Storage Support Micro SD card (Max. 128G)
Smart Alarm Motion detection
Wi-Fi Pairing SmartConfig (Wi-Fi One-Key Configuration)
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
General Features Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark
Minimum Network Requirements 2Mbps
Wi-Fi
Standard IEEE802.11a/b/g/n/ac
Frequency Range 2.412GHz ~ 2.462GHz/5.15GHz ~ 5.35GHz/ 5.725GHz ~ 5.825GHz
Channel Bandwidth Supports 20MHz
Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps
General
Operating Conditions -10°C ~ 45°C, Humidity 95% or less (non-condensing)
Power Supply DC 5V ±5%
Power Consumption Max. 8W
IR Range Max. 7.5meters
Product Dimensions 70mm x 70mm x 70.6mm
Packaging Dimensions 109.5mm x 109.5mm x 123mm
Weight 222g
