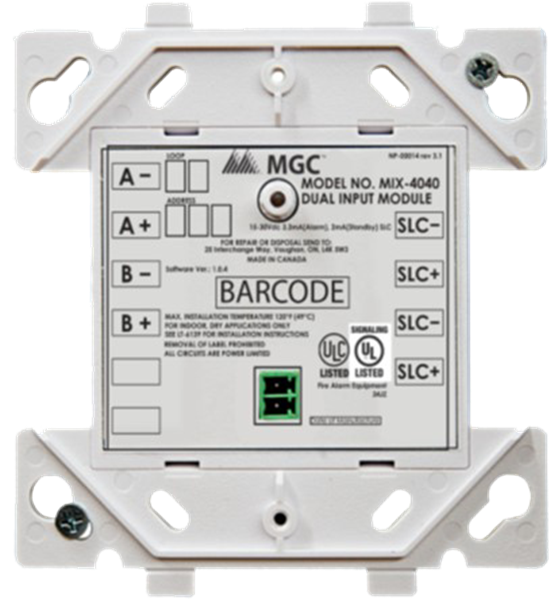

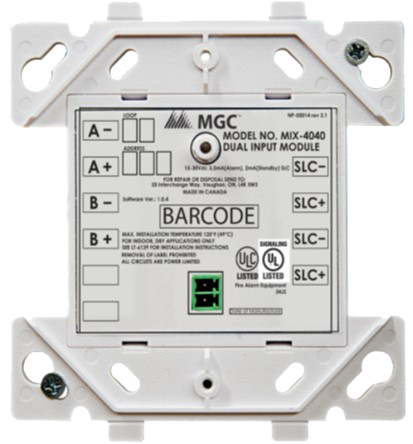

MIRCOM MODULO MONITOR DE DOS ENTRADAS MIX-4040

Homologado DNB/Montevideo/57/190/2021 The NEW MIX-4040 Dual Input Module is an intelligent addressable module is designed to be used for alarm, supervisory, or monitor applications. FEATURES The MIX-4040 Dual Input Module is designed to be used with MGC compatible panels. Any combination of MIX-4000 series devices up to 240 can be connected on a single SLC. Mounts in a standard 4” square or double gang electrical back box. Indicating LED provides module status The address of each module is set using the MIX-4090 programmer tool. Temperature range 32ºF to 120ºF (0ºC to 49ºC) BENEFITS Fast, reliable contact monitoring. Will automatically set inputs to single Class A or dual Class B according to the configuration sent by the fire alarm panel. No EOL resistor required when input is in Class A operation. Monitors two (2) independent circuits in Class B using one (1) module address ORDERING INFORMATION* MIX-4040 – Dual Input Module MIX-4090 – Addressable Device Programmer
